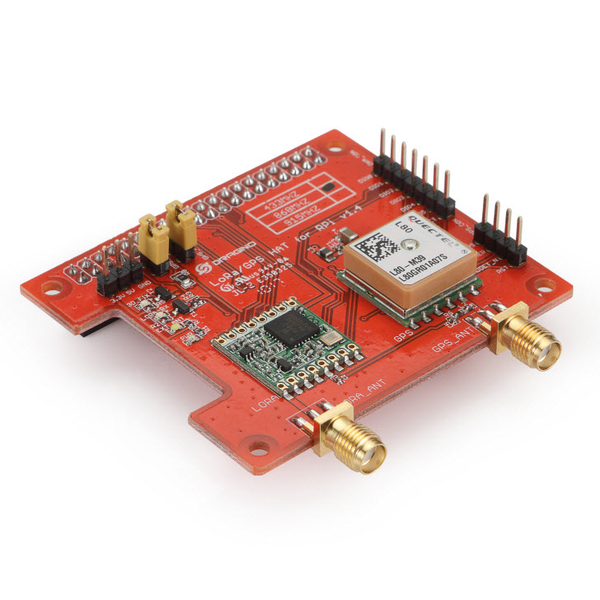

Seed Raspberry Pi LoRa/GPS HAT 868 Mhz

Link to wiki
Link to PDF manual
Compatible with Raspberry Pi 2 Model B/Raspberry Pi 3.
Built-in temperature sensor and low battery indicator.

LoRa Modem - 868 Mhz
LoRa Chip - SX1276/SX1278 transceiver
168 dB maximum link budget
+20 dBm - 100 mW constant RF output vs.

GPS Function connected to Pi Serial RX/TX
GPS Chip - MT3339

Raspberry Pi HAT integration

HAT            GPIO
3,3V            3,3V
5V               5V
GND           GND
DIO0          GPIO7
RX              GPIO15 (TX)
TX              GPIO16 (RX)
Reset          GPIO0
NSS           GPIO6
MISO        GPIO13/MISO
MOSI        GPIO12/MOSI
SCK          GPIO14/SCLK
